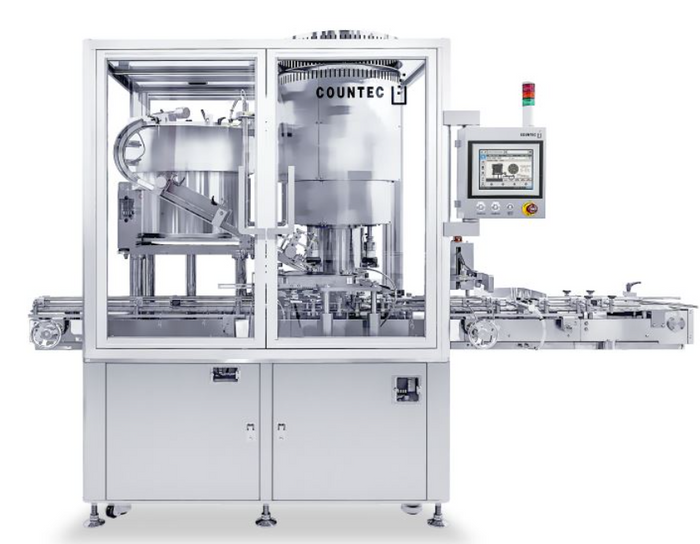

RCS120- Continuous Motion Rotary Capper

Biotec Solutions Stand: B100

Bottles are transferred from the conveyor to the rotary turret assembly by the star wheel.

Bulk cap feed with on-demand controls.

Caps are sorted and fed by the vibratory feeder.

Cap release by bottle sensor.

Cap pick-up by oscillating disc and transferred to capping head.

The servo-controlled rotary capping station has 4 capping heads.

Capping head descends and rotates to close the cap to a preset amount of torque

Specifications-

Output: Max. 120 bottles per minute depending on the shape and size of the cap

Bottle size ranges: Diameter 30-100mm, Height 40-200mm

Cap size ranges: Diameter 30-75mm

Power consumption: 8.2 kW

Compressed air : 6 kg/cm2

Dimension: 3,400(L) x 1,085(W) x 2,080(H) mm

Net weight: 1,500kg

For more details please visit our stall.
